Suction Machine

We are India's most reputed, largest manufacturers & exporters of high quality suction units since last 28 years. Our suction units have become synonymous with high quality, robust performance and great value for money.
OPTRA MAX
SLEEK
IKON
ULTRA
LIFE CARE
TRUEVAC
ACCU HIGH SUC
ACCU HIGH SUC - S.S.
ACCU HIGH SUC - LIPO
SUCTION ACCESSORIES

Enlarge Image

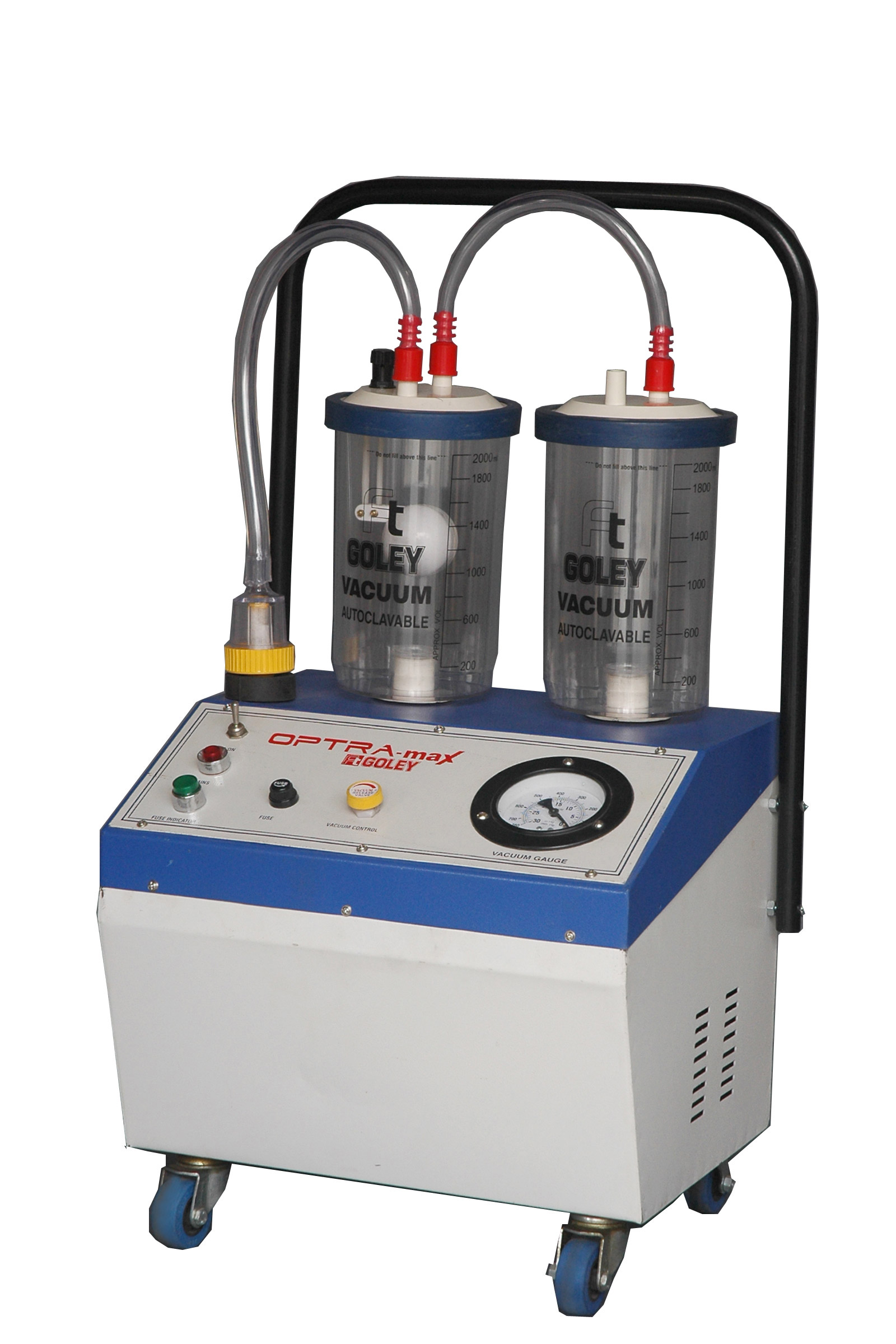

OPTRA – MAX

SAILENT FEATURES :-

  1. Wide application Range
  2. Heavy Duty motorized pump for fast vacuum built – up.
  3. Absolutely Noiseless.
  4. Finely regulable 0-715mm ± 10 Hg vacuum – Easy to read – off.
  5. Over Flow Safety Device: over – flow check valve and removable filter to protect the pump from moisture.
  6. Non collapsible tubing
  7. Self lubricating system for trouble free service.



TECHNICAL SPECIFICATIONS :-
Max Vacuum 715 ± 10mm Hg regulable through Vacuum Control Knob.
Suction Capacity 35 ltrs. / MIN
Vacuum Gauge Bourden Type 3” 0-760mm Hg caliberation
Suction Bottle Glass jars or 2 x 2000cc Poly carbonate jars (UNBREAKABLE ) with over flow check valve (float type)
Motor 1 / 4 hp motor Vacuum
Pump Rotary type.
Power Source AC 220V 50 Hz. Single Phase.
Overall Size L 330mm x W 405mm x H 730mm (Approx.)
Finish Powder coated.
Weight 25 kg (appox)

Enlarge Image

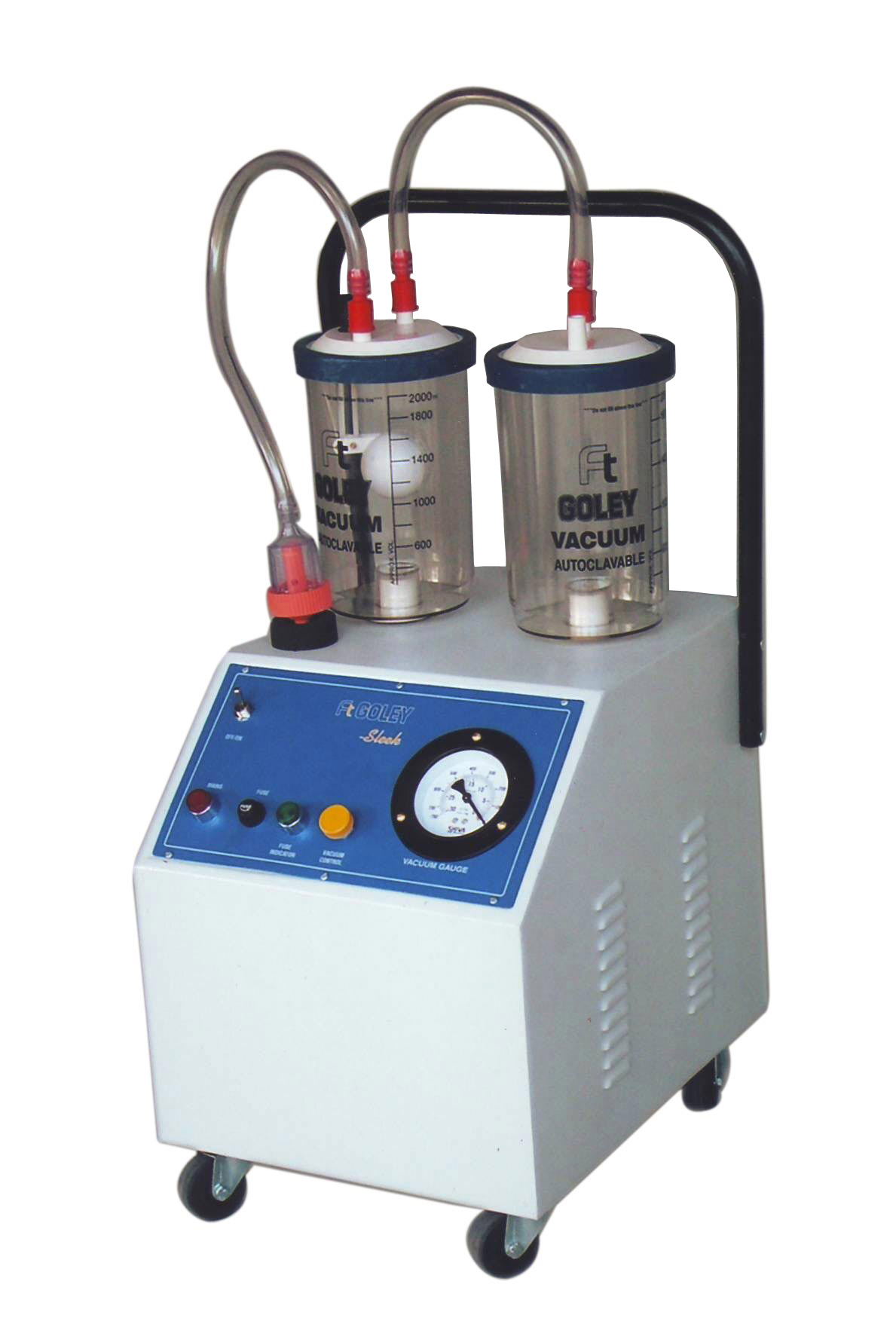

SLEEK

SAILENT FEATURES :-

  1. Compact design & mobile
  2. Finely regulable 0-710mm ± 10 Hg vacuum – Easy to read – off.
  3. Non collapsible tubing
  4. Heavy duty rotary pump
  5. Over Flow Safety Device: over – flow check valve and removable filter to protect the pump from moisture.
  6. Self lubricating system for trouble free service.

TECHNICAL SPECIFICATIONS :-
Max Vacuum 710 ± 10mm Hg regulable through Vacuum Control Knob.
Suction Capacity 35 ltrs. / MIN
Vacuum Gauge Bourden Type 3” 0-760mm Hg caliberation
Suction Bottle Glass jars or 2 x 2000cc Poly carbonate jars (UNBREAKABLE ) with over flow check valve (float type)
Sound noise less Motor: 1/4 hp motor
Vacuum Pump Rotary type.
Power Source AC 220V 50 Hz. Single Phase.
Overall Size L 330mm x W 405mm x H 730mm (Approx.)
Finish Powder coated.
Weight 24 kg (appox)



Enlarge Image

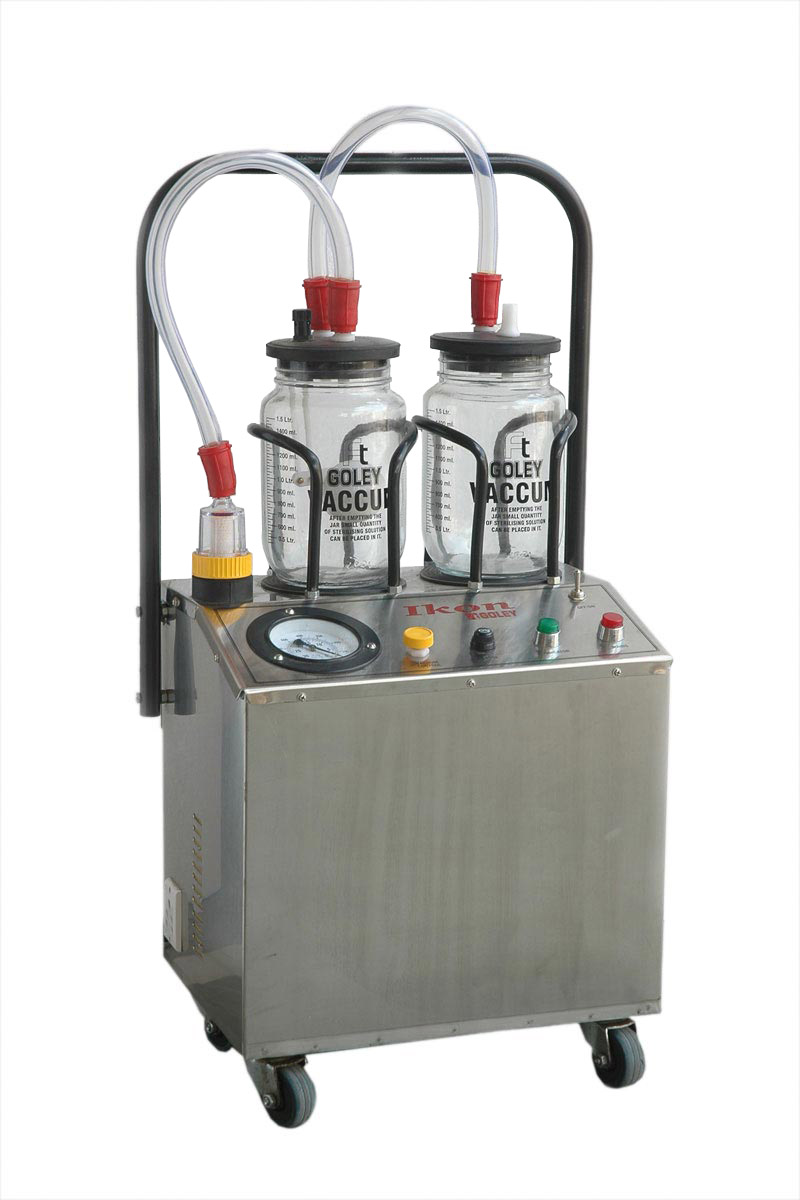

IKON ( FULL S.S.)

SAILENT FEATURES :-

  1. Complete S.S Body to prevent from rust
  2. Heavy Duty motorized pump for fast vacuum built – up.
  3. Absolutely Noiseless.
  4. Finely regulable 0-710mm ± 10 Hg vacuum – Easy to read – off.
  5. Over Flow Safety Device: over – flow check valve and removable filter to protect the pump from moisture.
  6. Non collapsible tubing
  7. Self lubricating system for trouble free service.

TECHNICAL SPECIFICATIONS :-
Max Vacuum 710 ± 10mm Hg regulable through Vacuum Control Knob.
Suction Capacity 35 ltrs. / MIN
Vacuum Gauge Bourden Type 3” 0-760mm Hg caliberation
Suction Bottle Glass jars or 2 x 2000cc Poly carbonate jars (UNBREAKABLE ) with over flow check valve (float type)
Motor 1 / 4 hp motor Vacuum
Pump Rotary type.
Power Source AC 220V 50 Hz. Single Phase. Current: 2.5+ 0.5 Amps.
Overall Size L 385mm x W 355mm x H 730mm (Approx.)
Finish Powder coated.
Weight 25 kg ( appox )

Enlarge Image

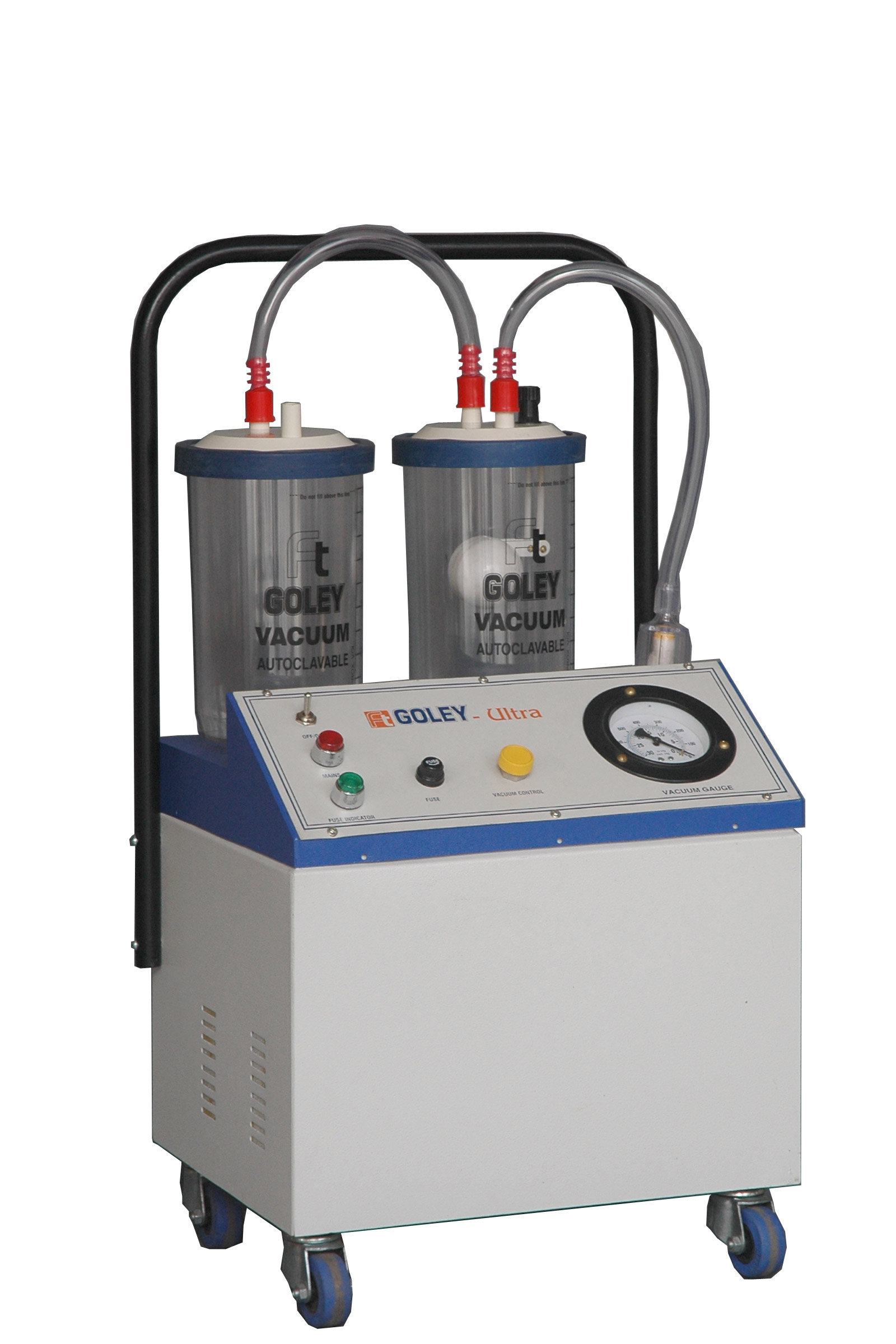

ULTRA

SAILENT FEATURES :-

  1. FULLY POWDER COATED BODY FOR LONG LIFE OF PRODUCT
  2. Heavy Duty motorized pump for fast vacuum built – up.
  3. Absolutely Noiseless.
  4. Finely regulable 0-710mm ± 10 Hg vacuum – Easy to read – off.
  5. Over Flow Safety Device: over – flow check valve and removable filter to protect the pump from moisture.
  6. Non collapsible tubing 7 Self lubricating system for trouble free service.

TECHNICAL SPECIFICATIONS :-
Max Vacuum 710 ± 10mm Hg regulable through Vacuum Control Knob.
Suction Capacity 35 ltrs. / MIN
Vacuum Gauge Bourden Type 3” 0-760mm Hg caliberation
Suction Bottle Glass jars or 2 x 2000cc Poly carbonate jars (UNBREAKABLE ) with over flow check valve (float type)
Motor 1 / 4 hp motor
Vacuum Pump Rotary type.
Power Source AC 220V 50 Hz. Single Phase.
Overall Size L 385mm x W 355mm x H 730mm (Approx.)
Finish Powder coated.
Weight 25 kg ( appox )

Enlarge Image

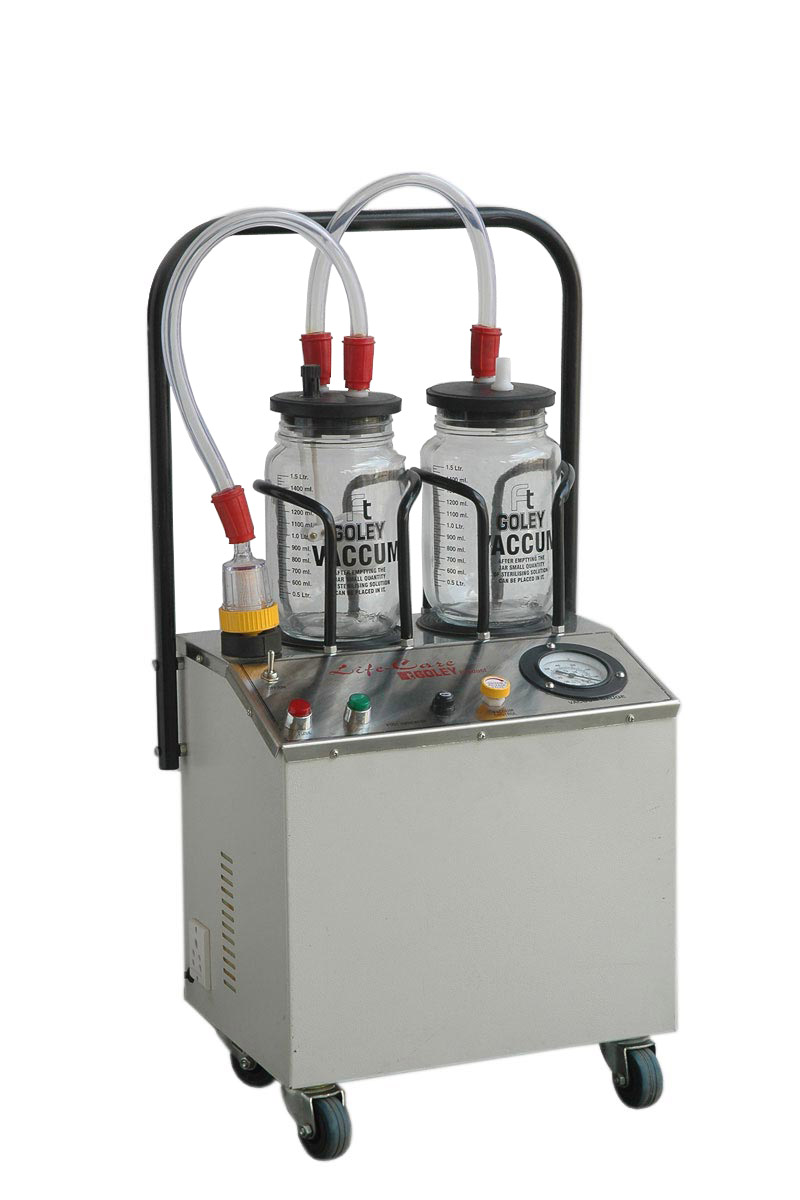

LIFE CARE ( S.S TOP)

SAILENT FEATURES :-

  1. Powder coated body fitted with S.S top
  2. Heavy Duty motorized pump for fast vacuum built – up.
  3. Absolutely Noiseless.
  4. Finely regulable 0-710mm ± 10 Hg vacuum – Easy to read – off.
  5. Over Flow Safety Device: over – flow check valve and removable filter to protect the pump from moisture.
  6. Non collapsible tubing
  7. Self lubricating system for trouble free service.

TECHNICAL SPECIFICATIONS :-
Max Vacuum 710 ± 10mm Hg regulable through Vacuum Control Knob.
Suction Capacity 35 ltrs. / MIN
Vacuum Gauge Bourden Type 3” 0-760mm Hg caliberation
Suction Bottle Glass jars or 2 x 2000cc Poly carbonate jars ( UNBREAKABLE ) with over flow check valve (float type)
Motor 1 / 4 hp motor
Vacuum Pump Rotary type.
Power Source AC 220V 50 Hz. Single Phase.
Overall Size L 385mm x W 355mm x H 730mm (Approx.)
Finish Powder coated.
Weight 25 kg ( appox )

Enlarge Image

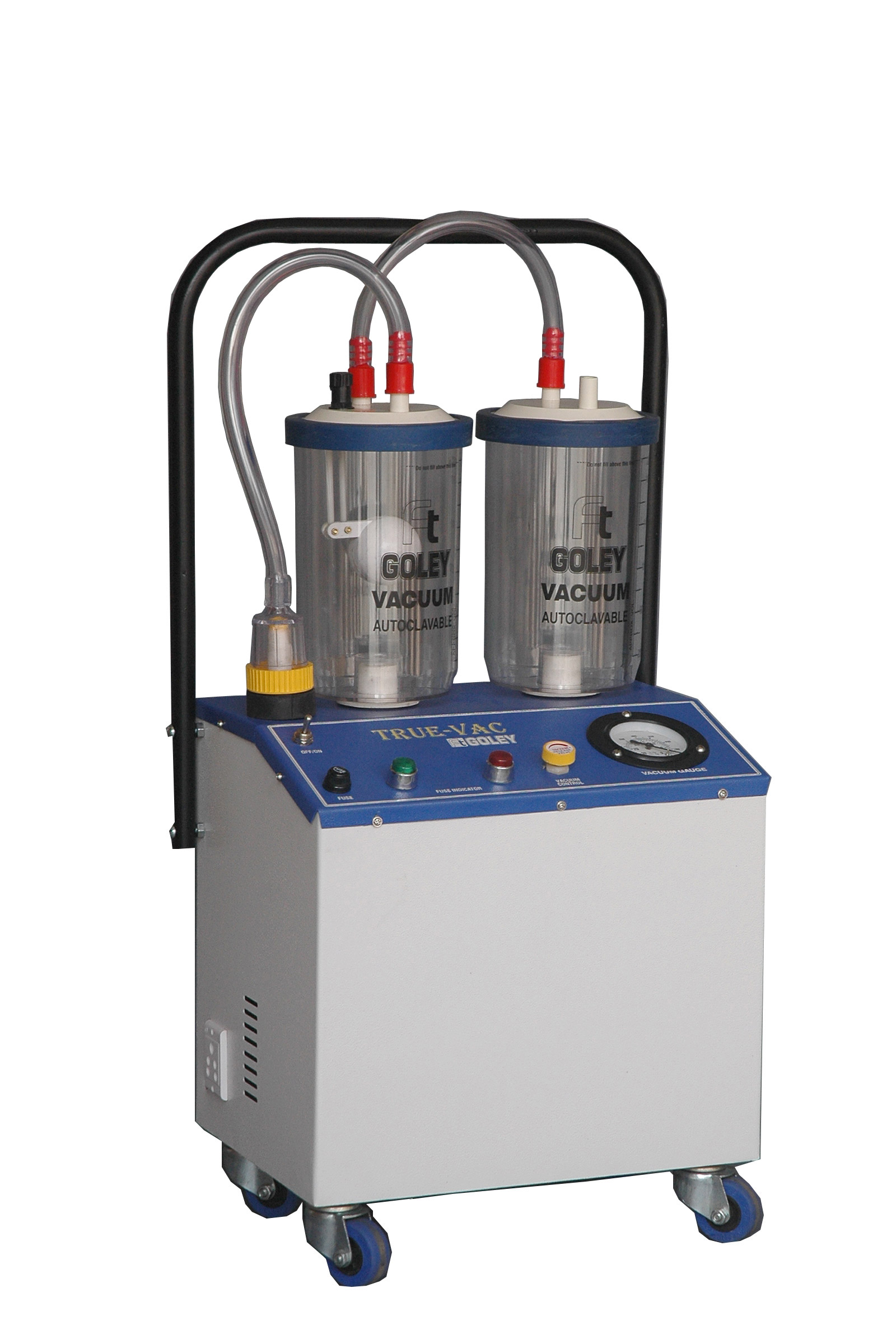

TRUE - VAC

SALIENT FEATURES

  1. FULLY POWDER COATED BODY FOR LONG LIFE OF PRODUCT
  2. Heavy Duty motorized pump for fast vacuum built – up.
  3. Absolutely Noiseless.
  4. Finely regulable 0-710mm ± 10 Hg vacuum – Easy to read – off.
  5. Over Flow Safety Device: over – flow check valve and removable filter to protect the pump from moisture.
  6. Non collapsible tubing
  7. Self lubricating system for trouble free service.
TECHNICAL SPECIFICATIONS
Max Vacuum 710 ± 10mm Hg regulable through Vacuum Control Knob.
Suction Capacity 35 ltrs. / MIN
Vacuum Gauge Bourden Type 3” 0-760mm Hg caliberation
Suction Bottle Glass jars or 2 x 2000cc Poly carbonate jars ( UNBREAK ABLE ) with over flow check valve (float type)
Motor 1 / 4 hp motor
Vacuum Pump Rotary type.
Power Source AC 220V 50 Hz. Single Phase.
Overall Size L 385mm x W 355mm x H 730mm (Approx.)
Finish Powder coated.
Weight 25 kg ( appox )

Enlarge Image

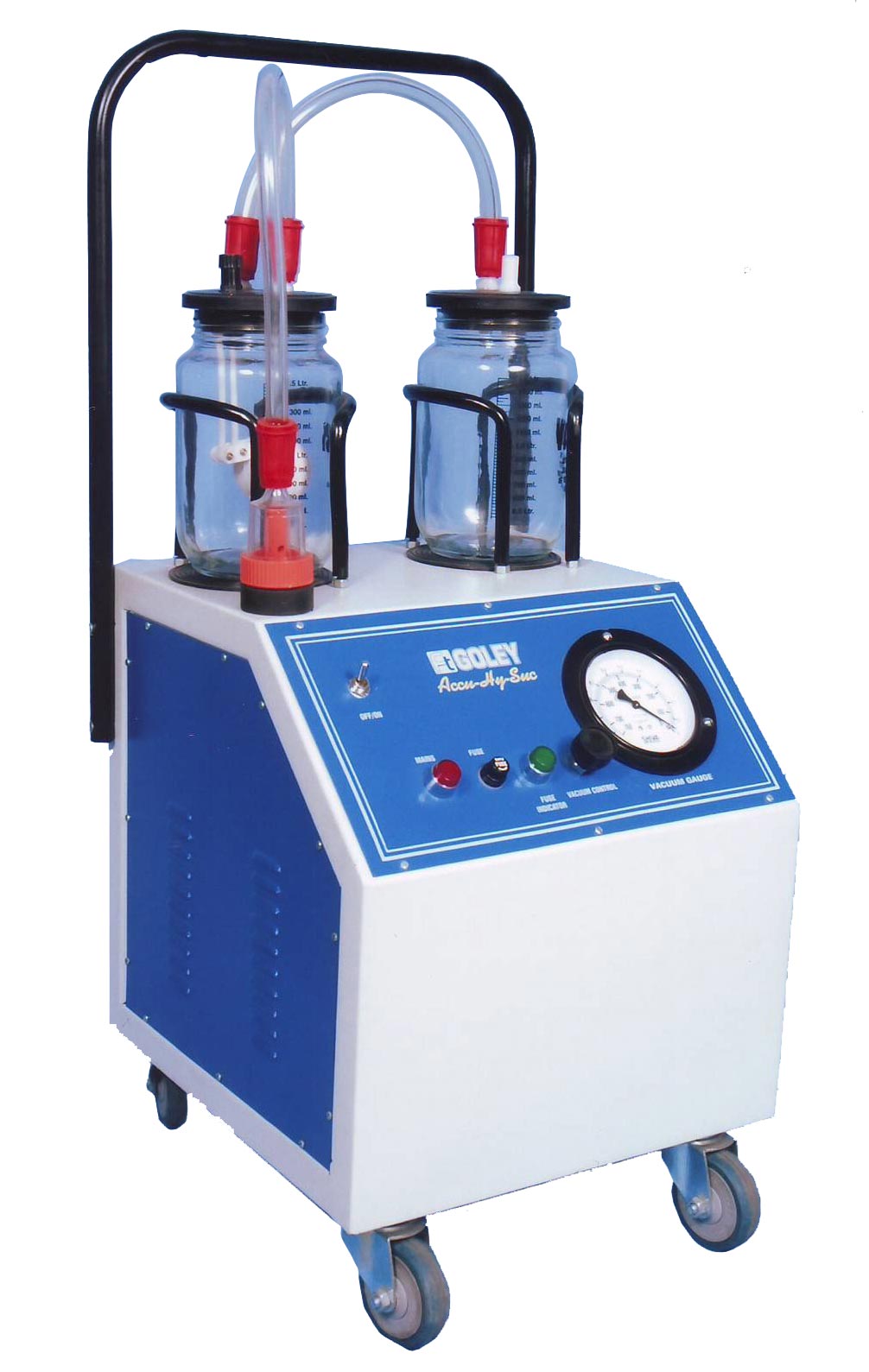

ACCU – HY – SUC

SAILENT FEATURES :-

  1. MS powder coated body
  2. Heavy Duty ½ hp motorized pump for fast vacuum built – up.
  3. Absolutely Noiseless.
  4. Self lubricating system for trouble free service.
  5. Finely regulable 0-730mm ± 10 Hg vacuum – Easy to read–off.
  6. Over Flow Safety Device: over – flow check valve and removable filter to protect the pump from moisture.
  7. Non collapsible tubing



TECHNICAL SPECIFICATIONS :-
Max Vacuum 730 ± 10mm Hg regulable through Vacuum Control Knob.
Suction Capacity 40 to 45 ltrs. / MIN
Vacuum Gauge Bourden Type 3” 0-760mm Hg caliberation
Suction Bottle Glass jars or 2 x 2000cc Poly carbonate jars (UNBREAKABLE ) with over flow check valve (float type)
Motor 1/2 hp motor Vacuum
Pump Rotary type.
Power Source AC 220V 50 Hz. Single Phase.
Overall Size L 380mm x W 390mm x H 825mm (Approx.)
Finish Powder coated. Weight 34 kg (appox)

Enlarge Image

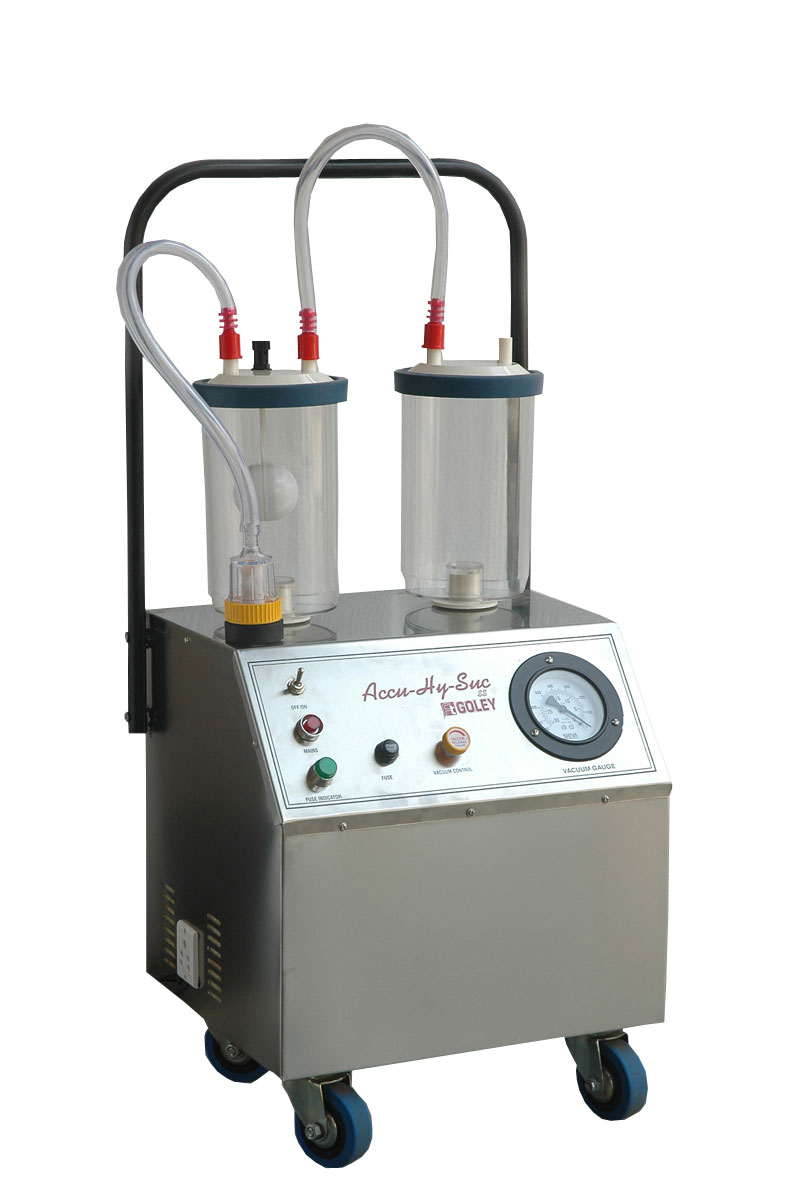

ACCU – HY – SUC ( S.S.)

SALIENT FEATURES
  1. Complete S.S Body to prevent from rust
  2. Heavy Duty ½ hp motorized pump for fast vacuum built – up.
  3. Absolutely Noiseless.
  4. Self lubricating system for trouble free service.
  5. Finely regulable 0-730mm ± 10 Hg vacuum – Easy to read – off.
  6. Over Flow Safety Device: over – flow check valve and removable filter to protect the pump from moisture.
  7. Non collapsible tubing

TECHNICAL SPECIFICATIONS
Max Vacuum 730 ± 10mm Hg regulable through Vacuum Control Knob.
Suction Capacity 40 to 45 ltrs. / MIN
Vacuum Gauge Bourden Type 4” 0-760mm Hg caliberation
Suction Bottle Glass jars or 2 x 2000cc Poly carbonate jars ( UNBREAK ABLE ) with over flow check valve (float type)
Motor 1/2 hp motor
Vacuum Pump Rotary type.
Power Source AC 220V 50 Hz. Single Phase.
Overall Size L 380mm x W 390mm x H 825mm (Approx.)
Finish Powder coated.
Weight 34 kg ( appox )

Enlarge Image

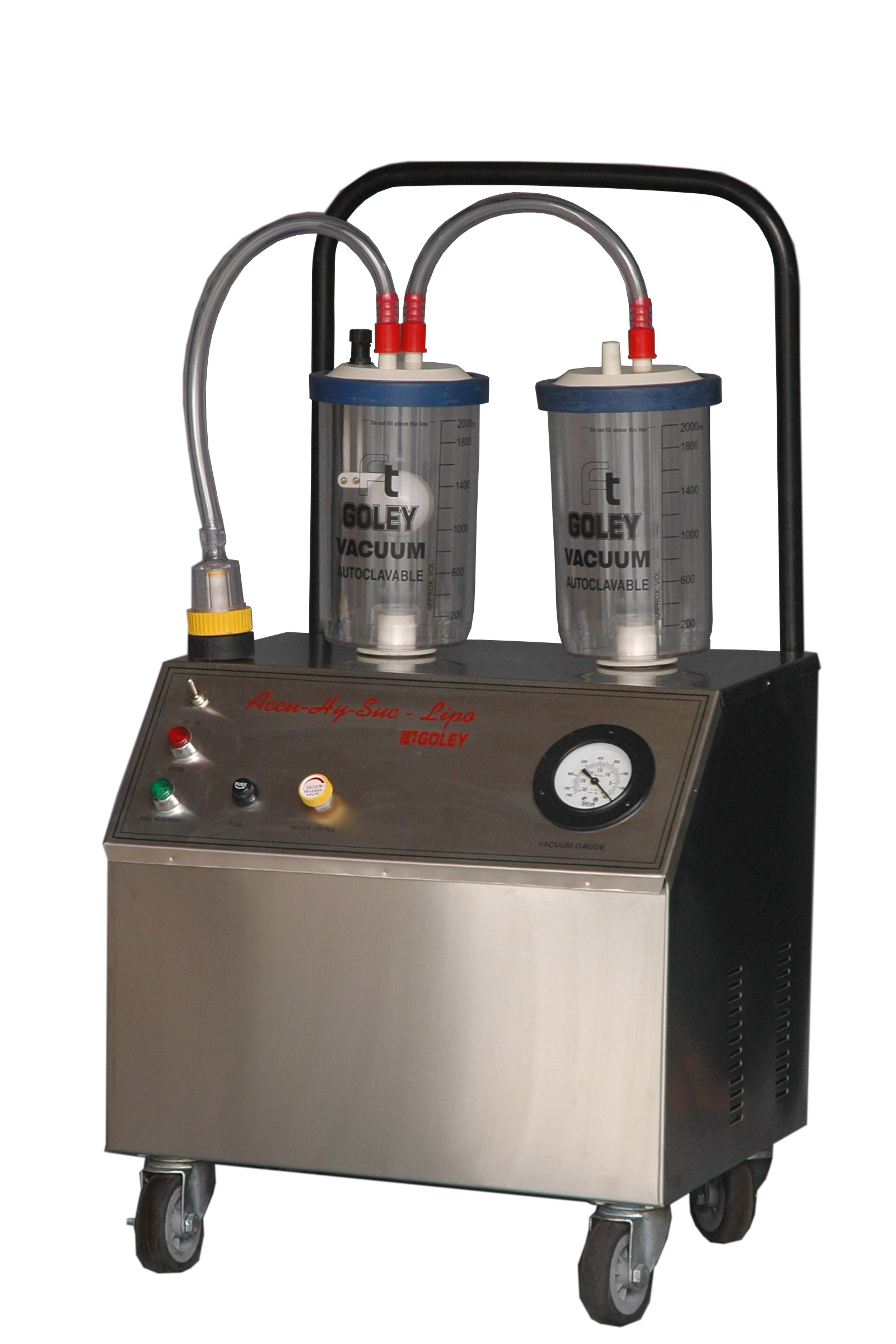

ACCU – HY – SUC (LIPO)

SALIENT FEATURES

  1. Complete S.S Body
  2. Heavy Duty 1 hp motorized double pump for fast vacuum built – up.
  3. Absolutely Noiseless.
  4. Self lubricating system for trouble free service.
  5. Finely regulable 0-750mm ± 10 Hg vacuum – Easy to read – off.
  6. Over Flow Safety Device: over – flow check valve and removable filter to protect the pump from moisture.
  7. Non collapsible tubing
TECHNICAL SPECIFICATIONS

Max Vacuum 750 ± 10mm Hg regulable through Vacuum Control Knob.
Suction Capacity 45 to 50 ltrs. / MIN
Vacuum Gauge Bourden Type 4” 0-760mm Hg caliberation
Suction Bottle Glass jars or 2 x 2000cc Poly carbonate jars ( UNBREAK ABLE ) with over flow check valve (float type)
Motor 1 hp motor
Vacuum Pump Rotary type ( double pump )
Power Source AC 220V 50 Hz. Single Phase.
Overall Size L 380mm x W 390mm x H 825mm (Approx.)
Finish Powder coated.
Weight 34 kg ( appox )

SUCTION UNIT SPARE



Enlarge Image

SUCTION TUBING



  • Tubing for Suction Unit
  • Silicon or PVC transparent tubing & soft sealing grip
  • Excellent flexible & heat resistance
  • Autoclaveable
  • Transparency of tubing allows visibility of fluid




Enlarge Image

POLLY CARBONATE JAR



  • Autoclave Jar with ABS Lid
  • Capacity of Jar 2Lt.


FILTER FOR SUCTION

Enlarge Image
