Horizontal High Pressure |
|

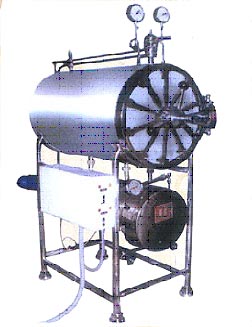

HORIZONTAL HIGH PRESSURE CYLINDRICAL STEAM STERLIZER (TRIPPLE WALL)
MODEL : FT – GOLEY
C O N S T R U C T I O N
For sterilization, Outer, inner chamber & lid are made
of stainless steel.Construction made off TRIPPLE walled,
It is fitted with Pressure Control Switch, Timer, Musical
bell & low water cut off etc. Autoclave can be operated at any
selected pressure 5 to 20 Pounds per sq. inch.
The whole unit is mounted on a robust tubular ms stand. Operatable on single / three phase, 220/440 Volts, 50Hz A.C. supply.
L I D
The lid made of thick stainless steel duly polished.
Radial locking system
P R E S S U R E S T A T
Pressure control switch controls the pressure in the autoclave.
It means when pressure reach at the pre-set point in the autoclave
heater will off automatically, and when pressure falls up to 0.5 pressure,
heater start again automatically.
| SIZES AVAILABLE :- |
Model
|
Diameter x height |
Heater |
| Ft |
400 mm x 600 mm ( 16” x 24” ) |
6 KW |
| Ft |
400 mm x 1100 mm ( 16” x 44” ) |
9 KW |
| Ft |
500 mm x 900 mm ( 20” x 36” ) |
9 KW |
| Ft |
500 mm x 1200 mm ( 20” x 48” ) |
9 KW |
|
|
|
