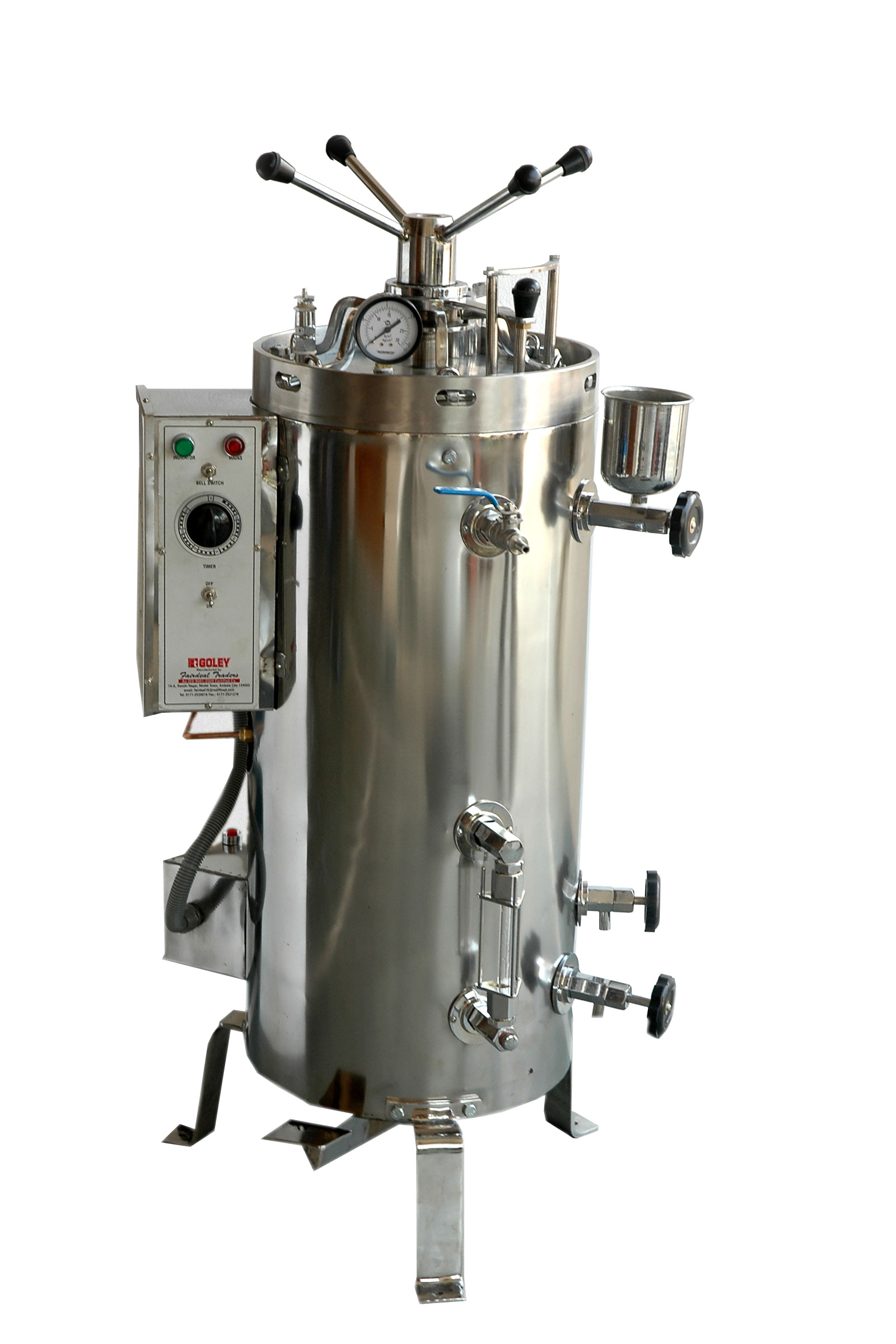

HIGH PRESSURE STEAM STERLIZER (SURGICAL) RADIAL LOCKING SYSTEM
CONSTRUCTION
The equipment is made of Tripple walled all the three walls are made of thick high grade stainless steel. The lid is also made of stainless steel. Unit is fitted with radial locking system with paddle lifting system device, pressure control switch, low water cut-off, pressure gauge, pressure release valve, musical alarm, timer and pressure safety wall.
Autoclave can be operated at any selected point 5 to 20 pounds per sq. inch
| SIZE AVAILABLE |
Model |
Diameter x height |
Capacity |
Heater |
FT – 101 |
(300 mmx500 mm) 12 x 20 |
2 Drums
(11 x 9) |
3 KW |
FT – 102 |
(400 mmx600 mm) 16 x 24 |
2 Drums
(15 x 12) |
4.5 KW |
|
LID
The lid made of thick stainless steel duly polished. The lid is tightened by the radial locking system
PRESSURE STAT
The equipment is provided with pressure control switch to control the pressure inside the autoclave as soon as the pressure inside the autoclave reaches the preset point the element of the equipment gets off automatically. When the pressure falls upto 0.5 - 1.0 pressure the elements start again automatically.
PENAL BOARD
There are two indicators provided on the panel the red indicator called main & other is green called line indicator
On – off switch, cord and plug of 15 amp three pin top electric 220 / 240 volts
One switch Is provided for the musical bell above the timer
The timer is provided to set the timer for sterilization
LOW WATER CUT OFF SYSTEM IS PROVIDED FOR THE ELEMENT SAFETY
NOTE : During ther sterilization if electricity fails , release valve must be open to avoide vacuuming & please lid not to be open in the under pressure.
|
